Kubernetes (K8s) is the de-facto standard technology for orchestrating containerised applications at scale. However, visualising it only as a K8s cluster diagram doesn’t express its architecture in a format accessible to all stakeholders.

Thinking about architecture with the C4 model works great as a technology-independent abstraction. However, software architectures are often visualised as cloud-specific diagrams like AWS/Azure/GCP diagrams or as Kubernetes cluster views. These diagrams are often static and contain all implementation details in a single view. Details like networking, service meshes, and ingress/egress traffic get in the way when trying to understand the high-level components of the architecture, like core business services or datastores. For organisations running on K8s with little-to-no architectural documentation, there’s a modelling problem.

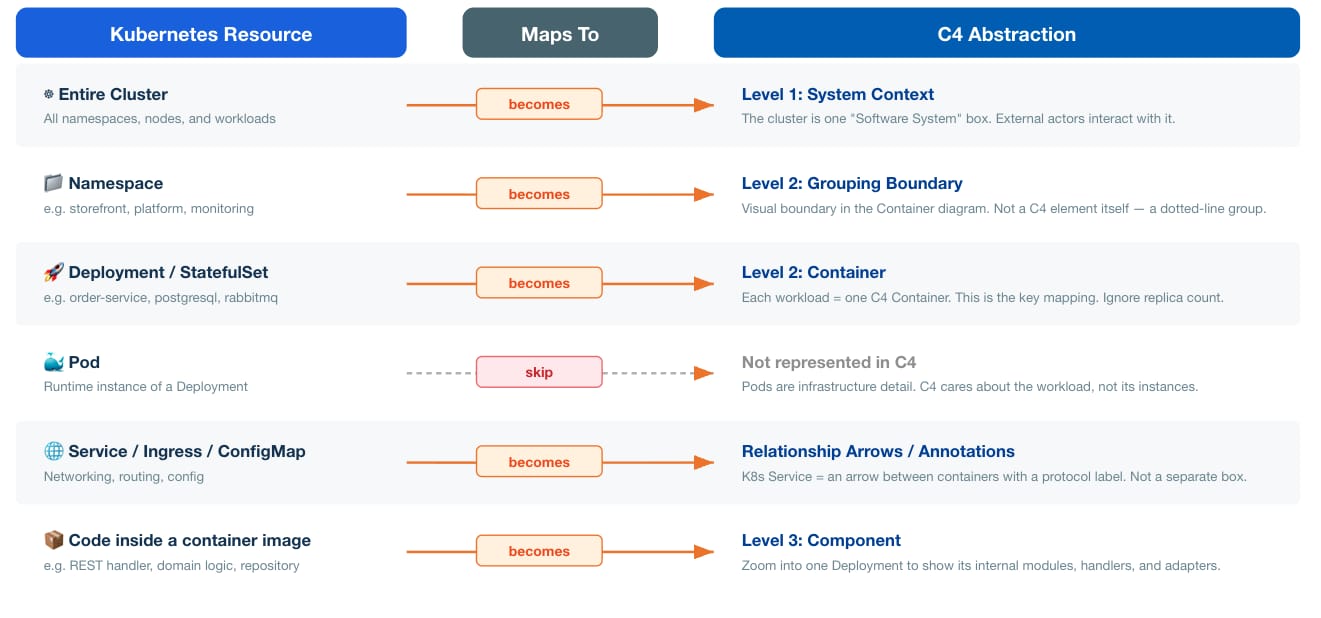

So, how does translating a Kubernetes cluster into the C4 model work?

For starters, the cluster becomes a single Context layer. In this view, the emphasis is on what the system does and who interacts with it (actors and external systems). At a high level, we draw the third-party APIs the cluster depends on and the users who interact with the system (e.g., admins and customers).

A K8s namespace is a logical grouping of resources within a cluster. It is a useful mechanism for isolating groups of resources together, but not modelled as a first-class element in the C4 model. For C4, it is a visual dotted-line boundary on the Container diagram. It could also be represented as a Group.

A K8s deployment defines how an application runs and scales. It specifies the number of instances to run, resource limits, and other metadata. In the C4 model, the Container diagram highlights a set of deployable/runnable units that power the system. Each unit is a K8s deployment. Pods are runtime instances that wrap one or more running containers (not to be confused with Container diagrams!). They do not belong to the C4 model since this is already abstracted by the deployment resource. Code inside the pod belongs to the Component diagram, where you show internal structure like REST handlers, API clients, and domain logic.

A K8s service is a networking mechanism that lets one workload talk to another. In C4, that’s just an arrow between two Containers with a protocol label. Other resources like Ingress rules, ConfigMaps, or Secrets are operational details that don’t need their own boxes on a Container diagram.

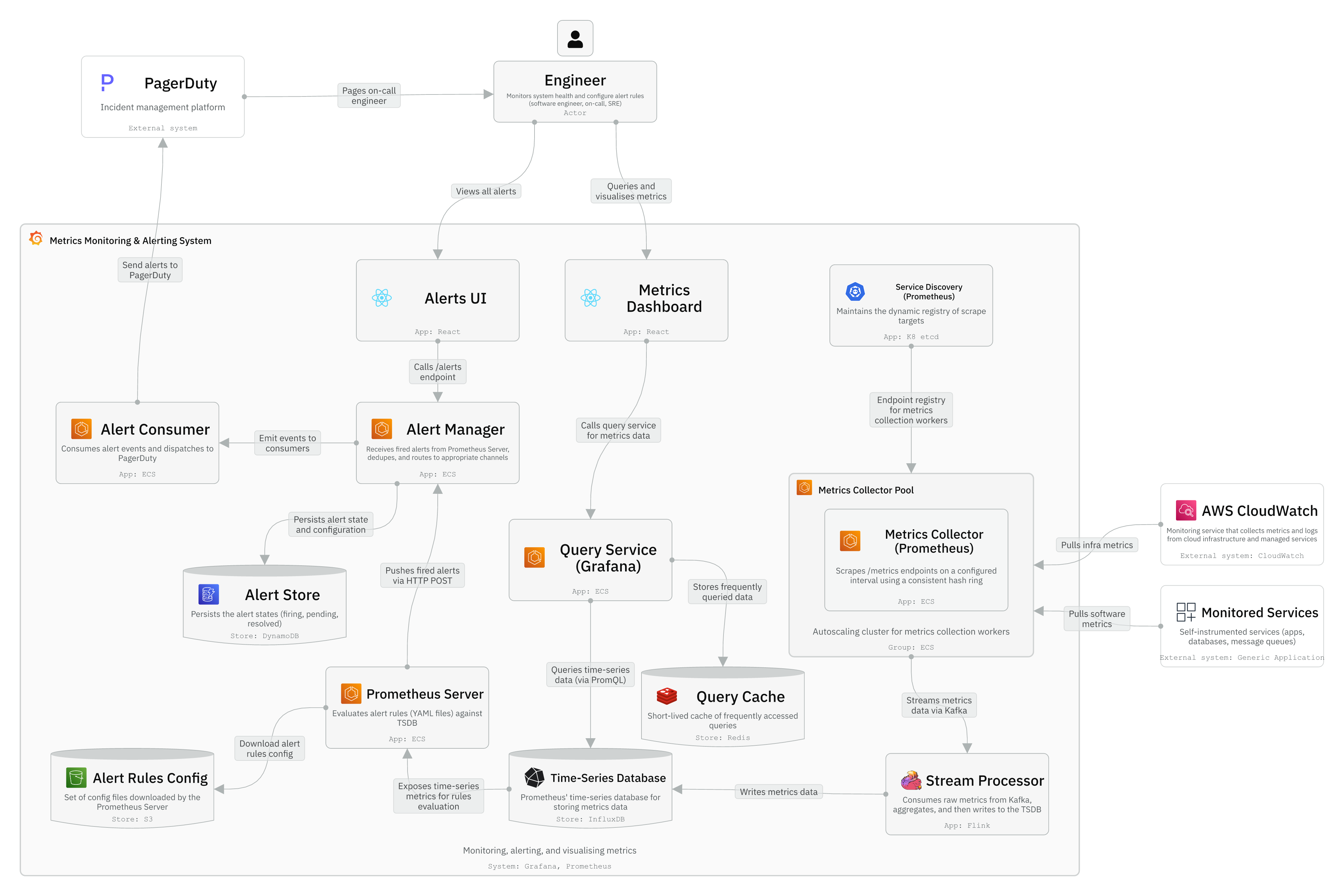

Another deep dive fresh off the press. Learn how to design a metrics and alerting system for infra observability and maintenance health. In this example, we’re using 2 popular technologies, Prometheus and Grafana.
